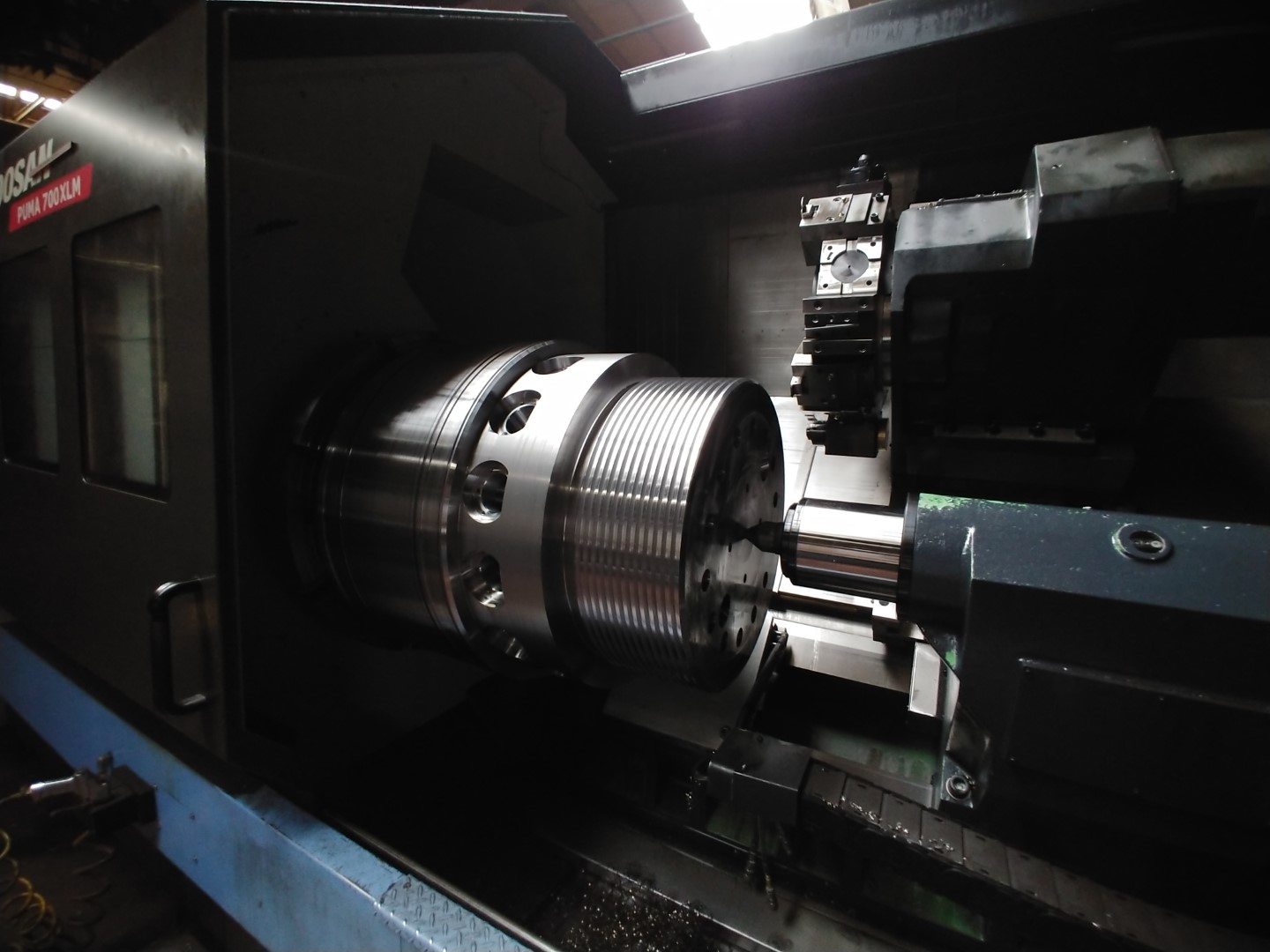

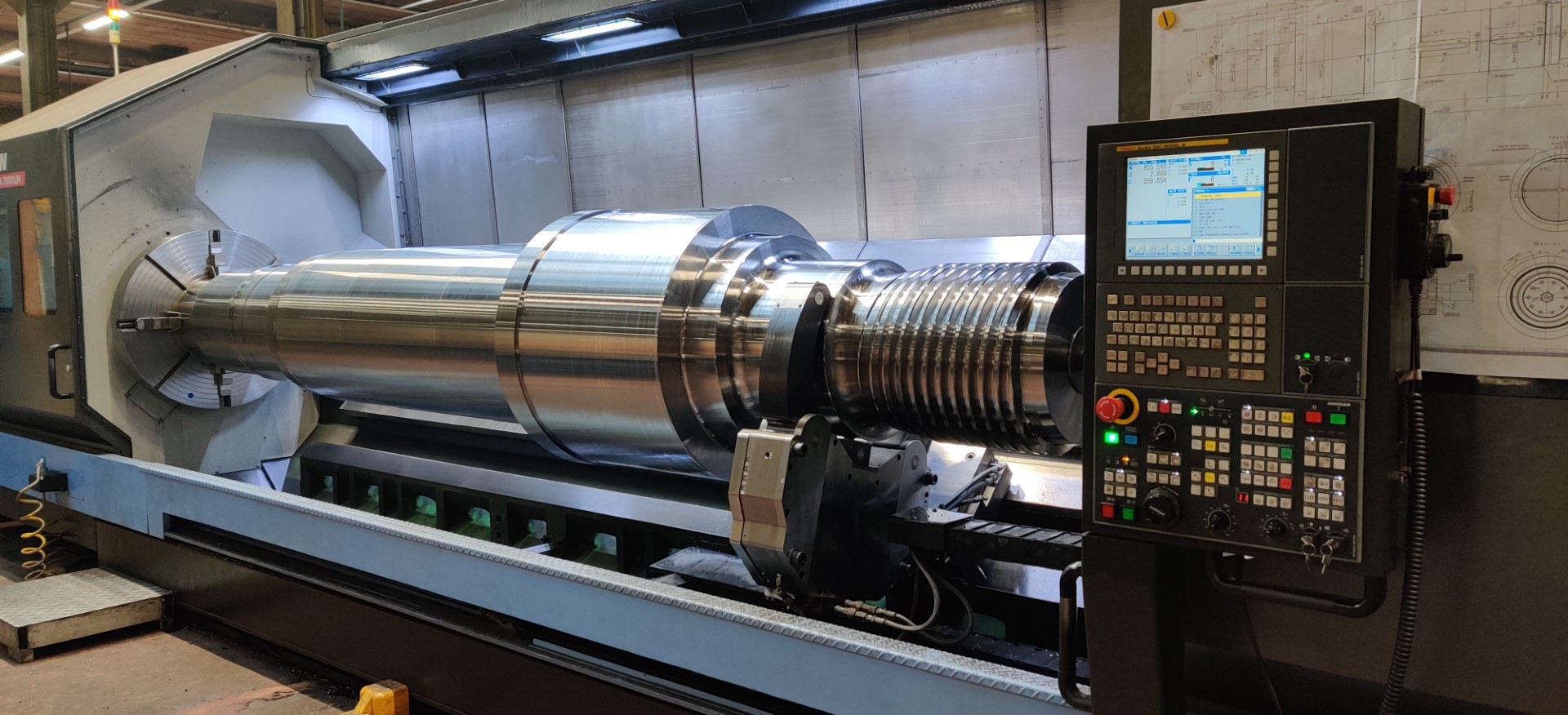

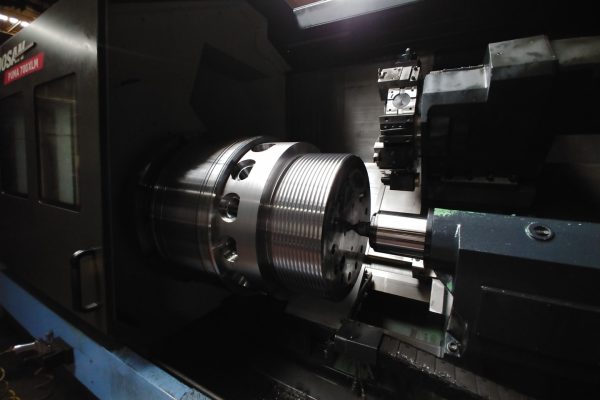

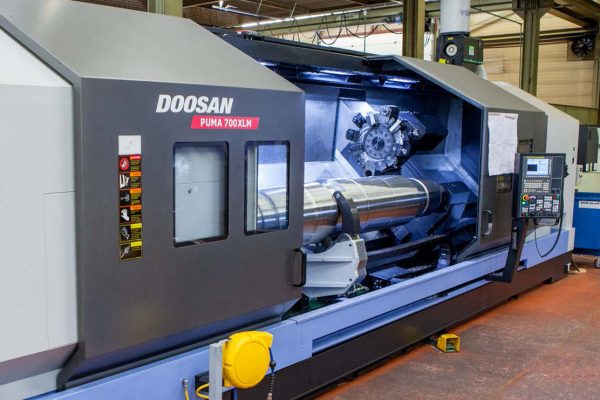

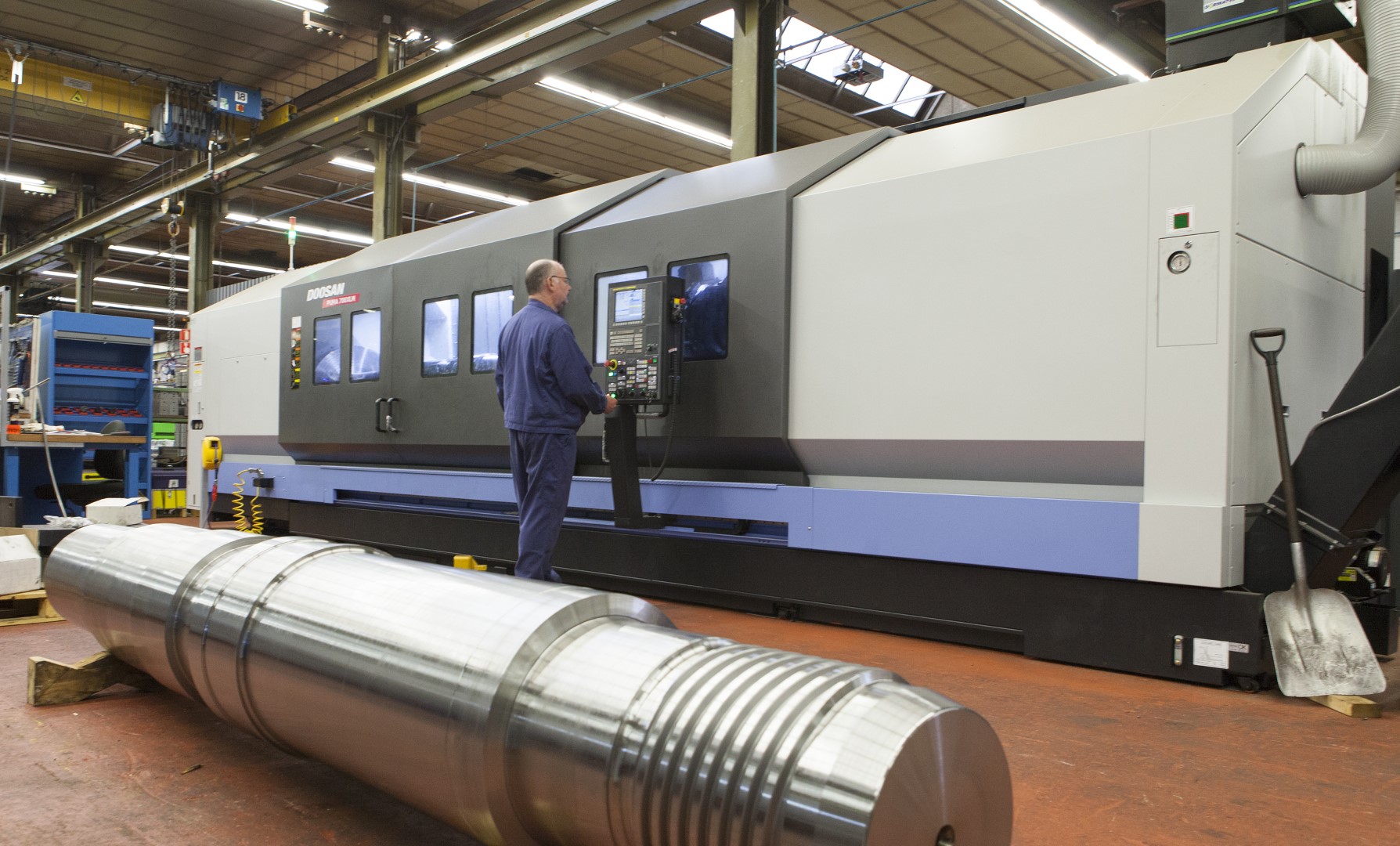

DOOSAN PUMA 700XLM (CNC – Fanuc 32i-B)
Turning diameter above the bed : ø 1140 mm
Turning diameter over the carriage : ø 1000 mm
Turning length between the centers : 5050 mm
max. workpiece weight without glasses : 8900 kg
12 powered tools
Hydraulic seat : up to Ø 600 mm
GURUTZPE (Conventional)
Turning diameter above the bed : ø 1215 mm
Turning diameter over the carriage : ø 860 mm
Turning diameter in the bag : ø 1500 mm x 680 mm
Turning length between the centers : 10000 mm
max. workpiece weight without glasses : 10000 kg
max. workpiece weight with glasses : 13000 kg
Internal turning : from ø 300 mm-long 1200 mm
If longer than along 2 sides
TOS SUS 80 (Conventional)
Turning diameter above the bed : ø 840 mm
Turning diameter over the carriage : ø 520 mm
Turning length between the centers : 8000 mm
max. workpiece weight without glasses: 6000 kg
Internal turning : ø 100 mm x 500 mm long
RAVENSBURG (Conventional)
Turning diameter above the bed : ø 1400 mm
Turning diameter over the carriage : ø 1100 mm max.
Turning diameter in the bag : ø 1700 mm
Turning length between the centers : 4500 mm
Chuck with special jaws : ø 1600 mm
Support displacement : 2600 mm
Transverse displacement : 750 mm
Copying device : sauter kmsa 1002
max. workpiece weight : 6000 kg
Internal turning : ø 300 mm – long 1200 mm

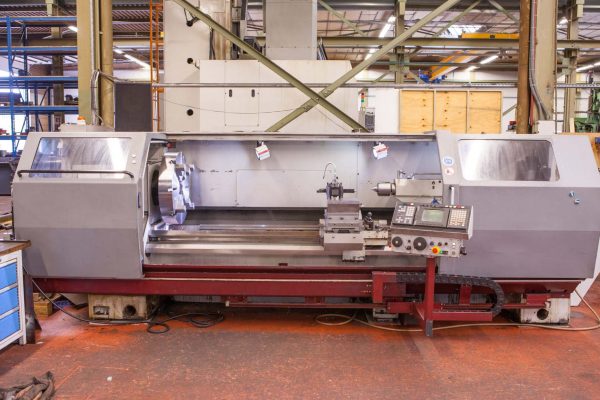

HARRISON ALPHA 800s (Teach in-Fanuc 21 i-T)
Turning diameter above the bed : ø 800 mm
Turning diameter over the carriage : ø 520 mm
Turning length between the centers : 2700 mm
PINACHO (CNC Fanuc 1.8)
Turning diameter above the bed : ø 600 mm
Turning diameter over the carriage : ø 400 mm
Turning length between centers : 2000 mm
CAZENEUVE (Conventional)
Turning diameter above the bed : ø 675 mm
Turning diameter over the carriage : ø 400 mm
Turning length between the centers : 1500 mm
Turning diameter in the bag : ø 900 mm x 175 mm long

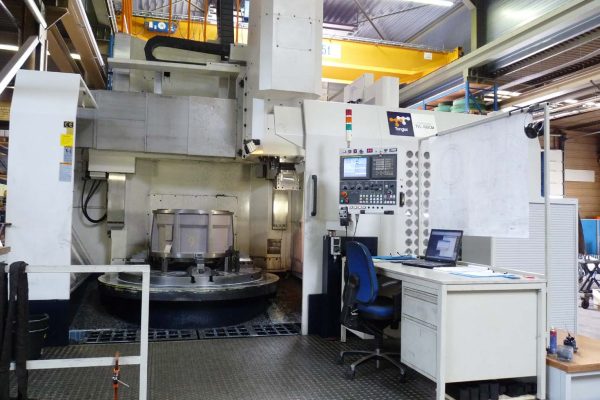

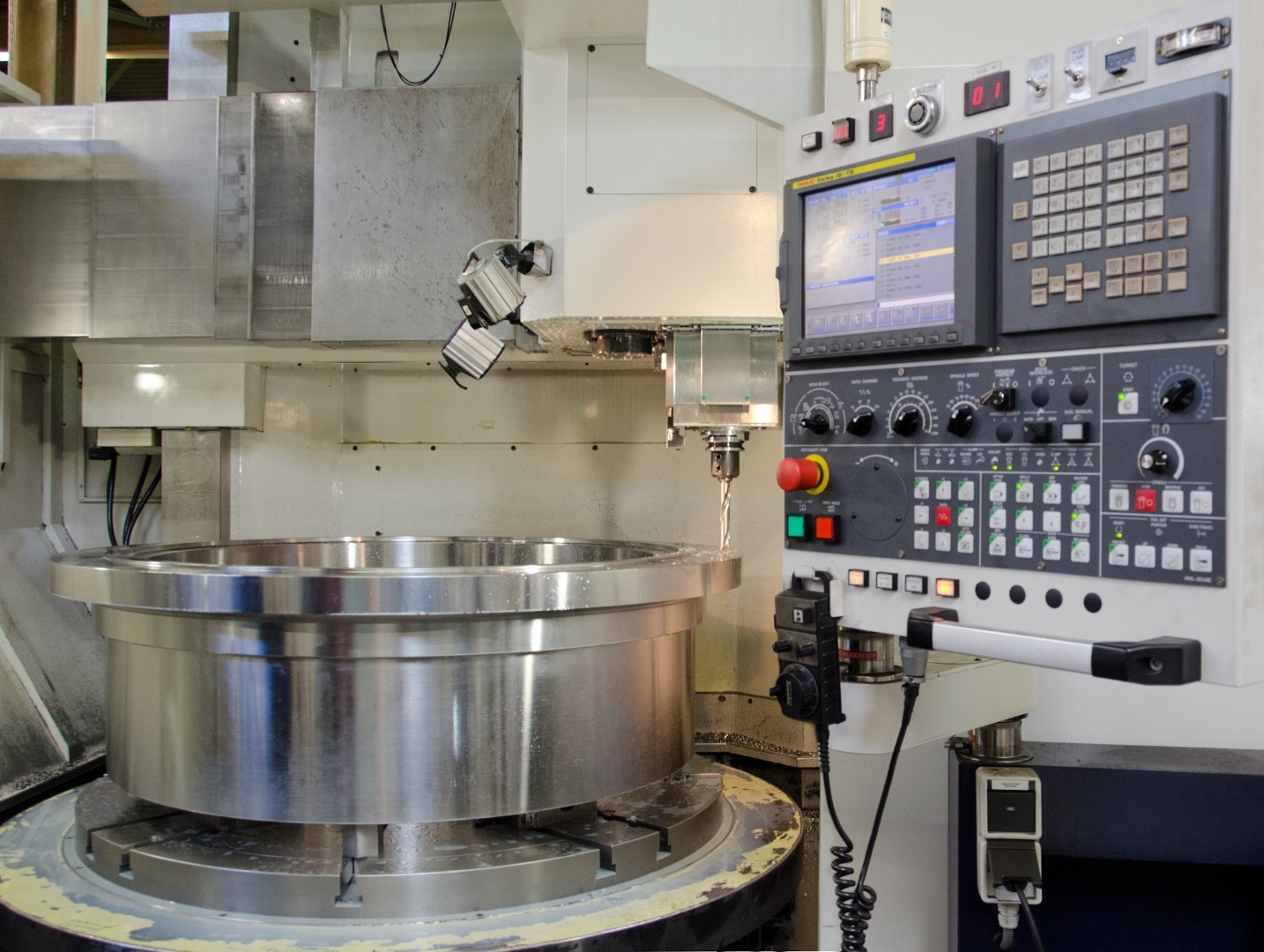

TONGTAI TOPPER (CNC-Fanuc 18i-TB)
With driven tools
Chuck: ø 1600 mm
Max. diameter : ø 2000 mm
Max. height : 1600 mm
Max. weight of piece : 8000 kg
